SAMPLES
VIDEO
BLOCK DIAGRAM
A MORE DETAILED DESCRIPTION
MAKING OF FEATURETTE
|
|
SAMPLES
C#
DRONE
turning up the oscillators one by one, followed by
noise & filtering
PLINEDA
prelimenary mixdown for the upcoming "Oengis Larc" record
the synth-line is the ShuttleDrone played by a sequencer (doepfer dark time)
|
|
VIDEO
|
|
|
|

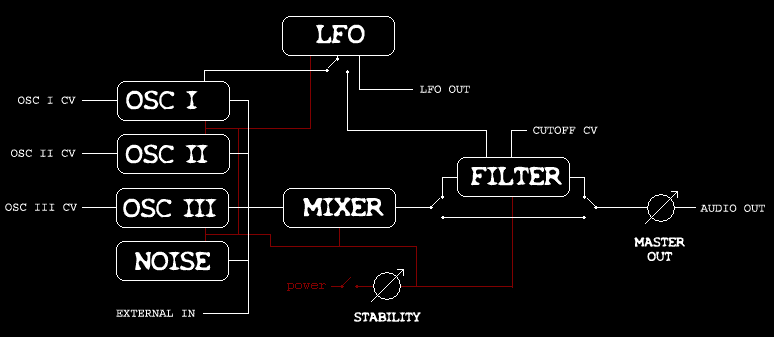

BLOCK
DIAGRAM:
A simple
concept...
|
|

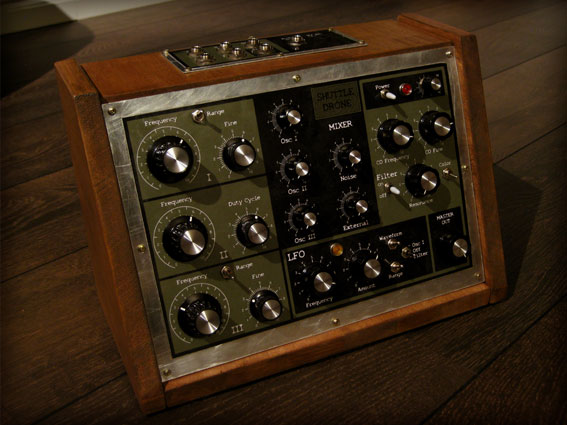

A MORE DETAILED
DESCRIPTION:
|
 |

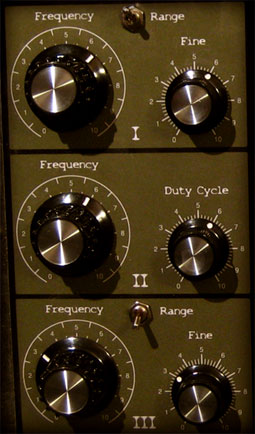

OSCILLATOR I Square
wave
tuned to C# when the freq is fully down, range switch
up & the fine-tuner somewhere in the middle...
sample:
aliens?
OSCILLATOR II
Textured square wave with adjustable
duty cycle
sample:
sweeping the controls
OSCILLATOR III
A filtered, more
mellow square wave
sample:
echo strings
sample: random sequence & space echo
|
|
 |
|

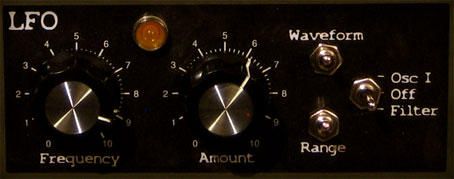

LFO
2 ranges
2 waveforms > square & morphed square
The destination-switch allows for internal routing to oscillator I
or the filter.
However, the top-panel enables the other 2 oscillators
to be modulated by the LFO aswell...
sample
|
|
|

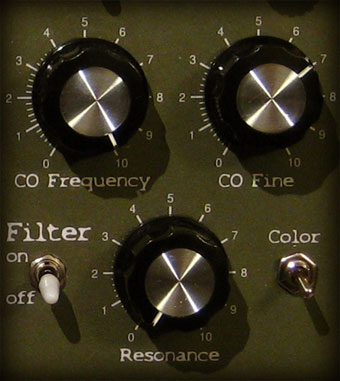

FILTER
LOW
PASS FILTER I
more or less copied this filter-circuit
from Music from
Outerspace (WSG)
Just added the color-switch - wich cuts some of the low end,
revealing more of the subtleties in the resonance - & a bypass
switch (because I usually prefer my moogerfooger to filter this device...)
|
|
sample
sequence on oscI
sample
utopia Synth through the filter
|
|
|
|
|
 |
MIXER
Obviously this mixes
the oscillators
The noise
control adds hiss
(a filtered white noise generator) The
external input is intended for other raw oscillator-type devices |
|
STABILITY
This control adds resistance to
the powersource, making the modules unstable
sample |
euhm, yes... |
|
|
|
|
 |

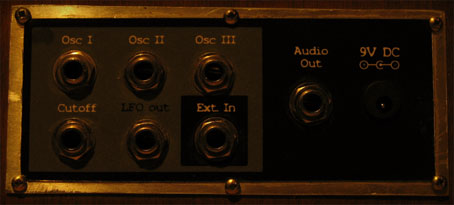

TOP PANEL
CV inputs for the 3 oscillators
& the cutoff frequency
LFO output - this is wired after
the amount-knob, but before the destination-switch. So it can be
patched to anywhere regardless of the internal routing
As stated before, the external
input is intended for oscillators, it does not take a guitar or
synth-signal. (actually voiced it specifically for my Utopia Synth)
|
|
|
|
|
MAKING OF FEATURETTE:
|
|
|
|
|

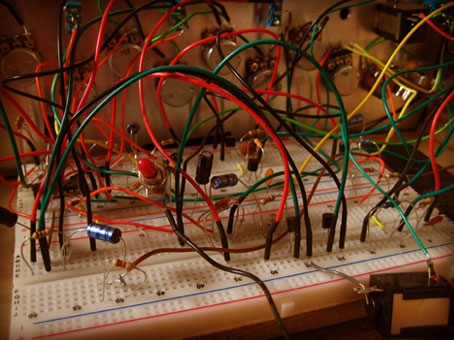

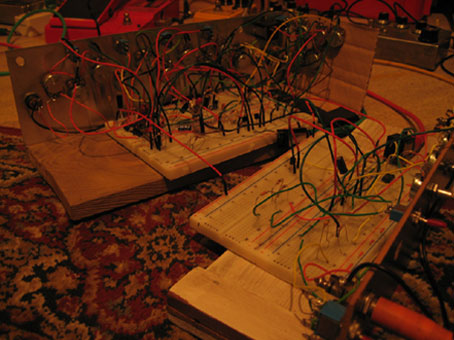

It started with
countless hours of experimentation
on the breadboard...
|
...untill I had a
final circuit...
|
|
|
|

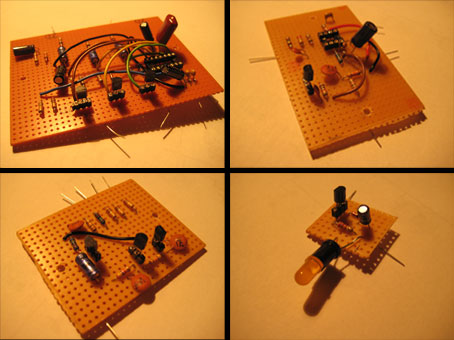

...soldered the
modules point to point
onto perforated boards...
|

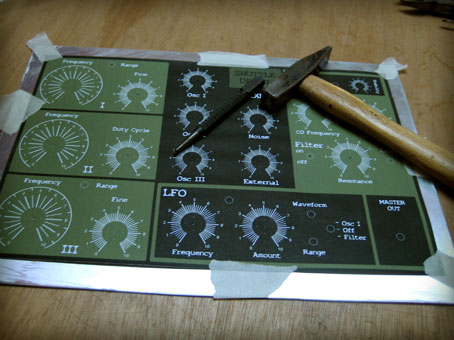

...marked the holes
on the aluminium faceplate
with a drill-punch...
|
 |
 |

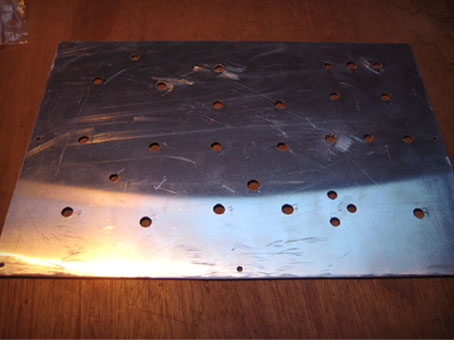

| ...drilled the
holes...
|

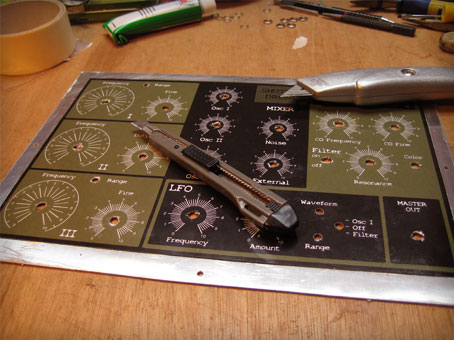

...glued on the
legend with tec7
& freed the holes...
|
 |
 |

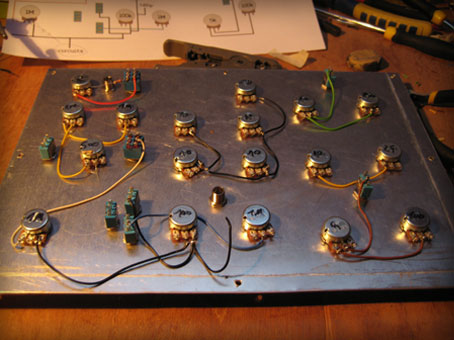

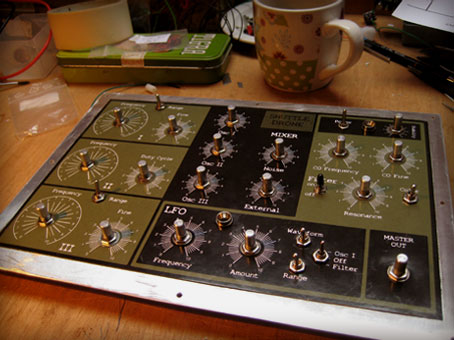

| ...added the
controls...
|

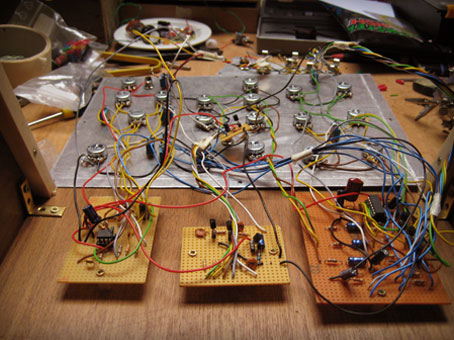

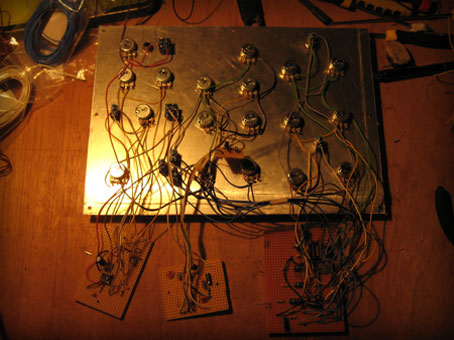

...added some
wires...
|
 |
 |
..added some more
wires...
this step took
7 hours of continuous soldering,
only interupted by the occasional sigaret & coffee-refill
|

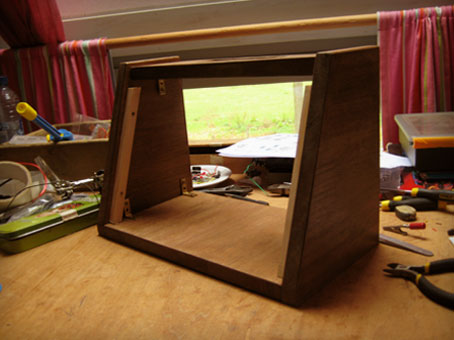

...made the wooden
case...
|
 |
 |

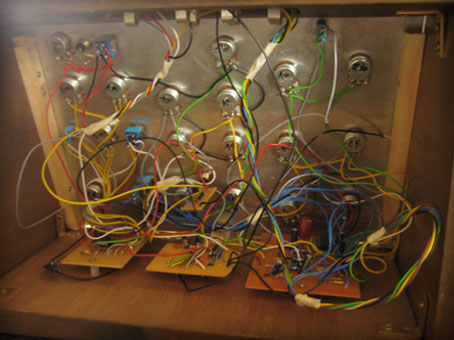

| ...mounted the boards
& faceplate...
|
...hooked everything
up...
Several things do not work, shit...
|
|
|
pic |

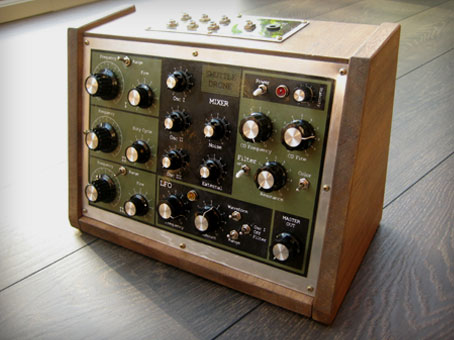

...after a 3-day
troubleshoot nightmare
I screwed everything together & added the knobs...
|
blablabla
|
| pic |
pic |
| blablabla
|
blablabla
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
